Datapoints for he4 + gd198 -> p + tb201
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 1.694959e-227 |
| 0.4 | 2.688541e-169 |
| 0.5 | 9.783178e-136 |
| 0.6 | 3.344971e-114 |
| 0.7 | 2.530700e-99 |
| 0.8 | 1.861823e-88 |
| 0.9 | 3.631975e-80 |
| 1 | 1.295943e-73 |
| 1.5 | 7.104136e-54 |
| 2 | 3.507793e-43 |
| 2.5 | 5.825911e-36 |
| 3 | 1.359044e-30 |
| 3.5 | 2.008511e-26 |
| 4 | 4.082847e-23 |
| 4.5 | 1.842770e-20 |
| 5 | 2.585149e-18 |
| 6 | 4.066371e-15 |
| 7 | 7.468257e-13 |
| 8 | 4.883467e-11 |
| 9 | 2.667795e-09 |
| 10 | 2.387617e-07 |

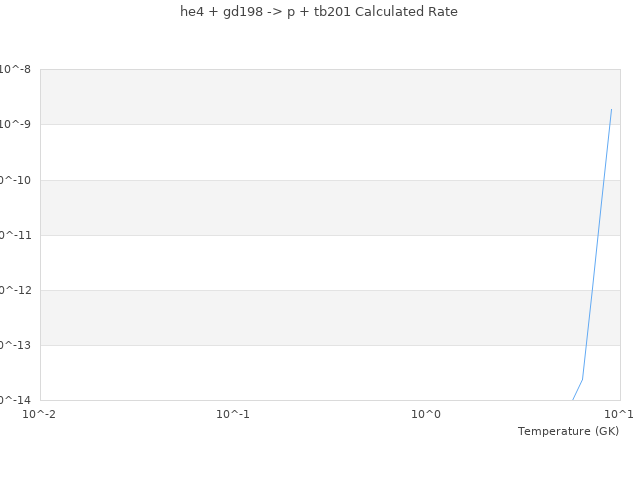

| View Graph | |
