Datapoints for he4 + gd199 -> p + tb202
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 8.876737e-226 |
| 0.4 | 6.094487e-168 |
| 0.5 | 1.341106e-134 |
| 0.6 | 3.285791e-113 |
| 0.7 | 1.963473e-98 |
| 0.8 | 1.211980e-87 |
| 0.9 | 2.063798e-79 |
| 1 | 6.603848e-73 |
| 1.5 | 2.561697e-53 |
| 2 | 1.011292e-42 |
| 2.5 | 1.383478e-35 |
| 3 | 2.679576e-30 |
| 3.5 | 3.301311e-26 |
| 4 | 5.624897e-23 |
| 4.5 | 2.145789e-20 |
| 5 | 2.573736e-18 |
| 6 | 3.099054e-15 |
| 7 | 4.707813e-13 |
| 8 | 2.792550e-11 |
| 9 | 1.534441e-09 |
| 10 | 1.543982e-07 |

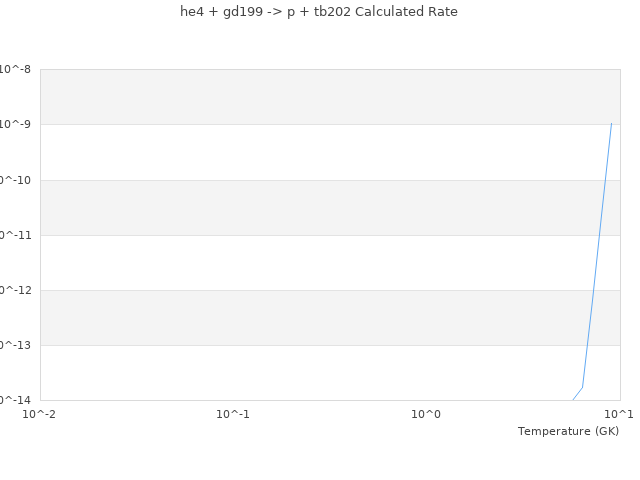

| View Graph | |
