Datapoints for he4 + gd209 -> p + tb212
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 1.461494e-226 |
| 0.4 | 1.174271e-168 |
| 0.5 | 4.210859e-135 |
| 0.6 | 1.603307e-113 |
| 0.7 | 1.311630e-98 |
| 0.8 | 9.754381e-88 |
| 0.9 | 1.795017e-79 |
| 1 | 5.691249e-73 |
| 1.5 | 1.030062e-53 |
| 2 | 1.341967e-43 |
| 2.5 | 6.912845e-37 |
| 3 | 6.507625e-32 |
| 3.5 | 5.052519e-28 |
| 4 | 6.787820e-25 |
| 4.5 | 2.436722e-22 |
| 5 | 3.128127e-20 |
| 6 | 5.324466e-17 |
| 7 | 1.180013e-14 |
| 8 | 8.283958e-13 |
| 9 | 3.626345e-11 |
| 10 | 1.692193e-09 |

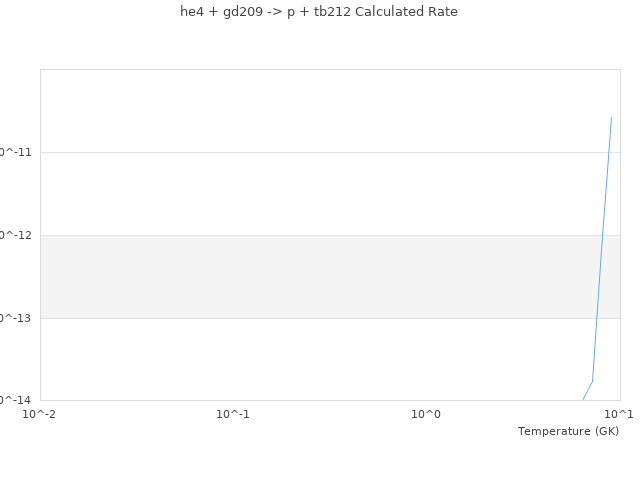

| View Graph | |
