Datapoints for p + tb212 -> he4 + gd209
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.314729e-225 |
| 0.15 | 1.832877e-149 |
| 0.2 | 4.412292e-109 |
| 0.3 | 9.033145e-69 |
| 0.4 | 4.657954e-50 |
| 0.5 | 5.095989e-40 |
| 0.6 | 4.081581e-34 |
| 0.7 | 2.117058e-30 |
| 0.8 | 6.290771e-28 |
| 0.9 | 3.399932e-26 |
| 1 | 6.411021e-25 |
| 1.5 | 2.440826e-21 |
| 2 | 4.612033e-19 |
| 2.5 | 4.706451e-17 |
| 3 | 3.243770e-15 |
| 3.5 | 1.450633e-13 |
| 4 | 4.074706e-12 |
| 4.5 | 7.223562e-11 |
| 5 | 8.357828e-10 |
| 6 | 3.849289e-08 |
| 7 | 6.474441e-07 |
| 8 | 6.572212e-06 |
| 9 | 6.393411e-05 |
| 10 | 8.956641e-04 |

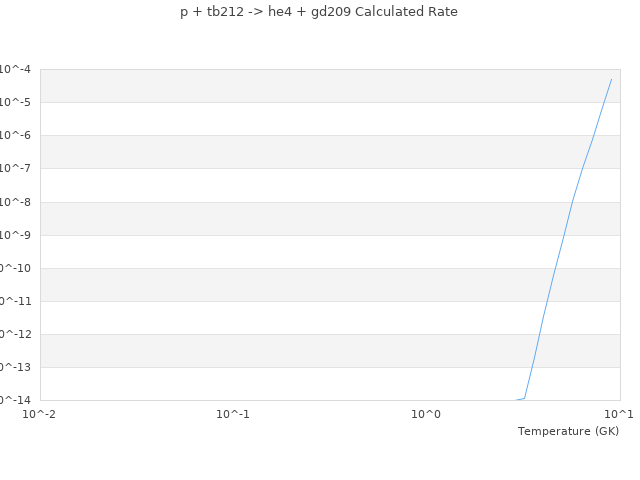

| View Graph | |
