Datapoints for p + tb213 -> he4 + gd210
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.621677e-225 |
| 0.15 | 5.216298e-150 |
| 0.2 | 1.482190e-109 |
| 0.3 | 3.705768e-69 |
| 0.4 | 2.130315e-50 |
| 0.5 | 2.480911e-40 |
| 0.6 | 2.061308e-34 |
| 0.7 | 1.092407e-30 |
| 0.8 | 3.286276e-28 |
| 0.9 | 1.788117e-26 |
| 1 | 3.383249e-25 |
| 1.5 | 1.293078e-21 |
| 2 | 2.480490e-19 |
| 2.5 | 2.620004e-17 |
| 3 | 1.898038e-15 |
| 3.5 | 9.009377e-14 |
| 4 | 2.698340e-12 |
| 4.5 | 5.101465e-11 |
| 5 | 6.273306e-10 |
| 6 | 3.194232e-08 |
| 7 | 5.691370e-07 |
| 8 | 5.792925e-06 |
| 9 | 5.302974e-05 |
| 10 | 6.520970e-04 |

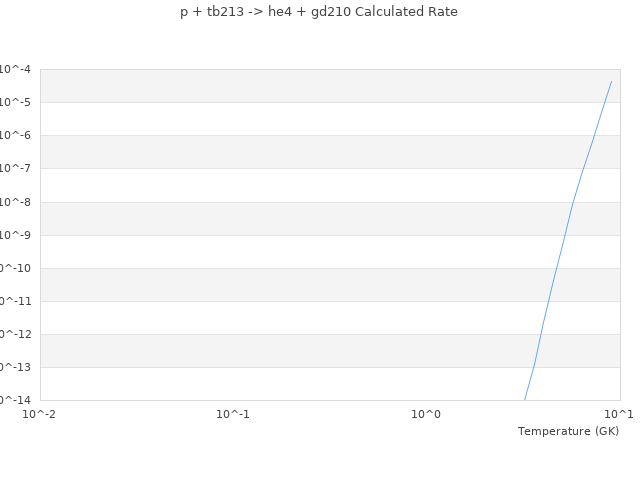

| View Graph | |
