Datapoints for he4 + gd213 -> p + tb216
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 2.180837e-229 |
| 0.4 | 1.271044e-170 |
| 0.5 | 1.561966e-136 |
| 0.6 | 1.356301e-114 |
| 0.7 | 1.976428e-99 |
| 0.8 | 2.229391e-88 |
| 0.9 | 5.576327e-80 |
| 1 | 2.224247e-73 |
| 1.5 | 6.962417e-54 |
| 2 | 1.066769e-43 |
| 2.5 | 5.924523e-37 |
| 3 | 5.994659e-32 |
| 3.5 | 5.100386e-28 |
| 4 | 7.667900e-25 |
| 4.5 | 3.127433e-22 |
| 5 | 4.593553e-20 |
| 6 | 1.010687e-16 |
| 7 | 2.706797e-14 |
| 8 | 2.041581e-12 |
| 9 | 8.206801e-11 |
| 10 | 2.914745e-09 |

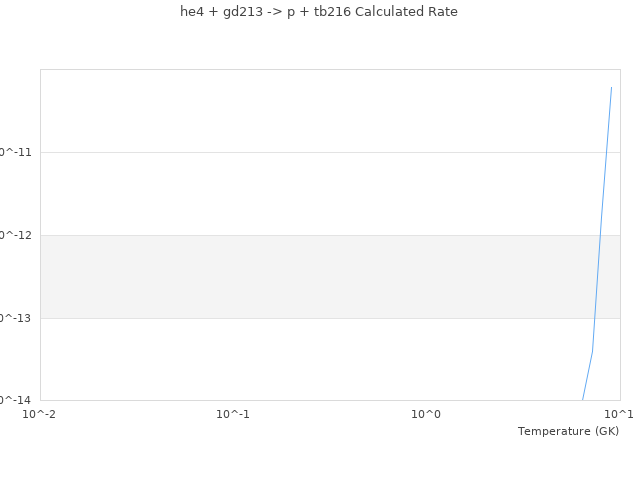

| View Graph | |
