Datapoints for p + tb216 -> he4 + gd213
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.056258e-226 |
| 0.15 | 1.232380e-150 |
| 0.2 | 4.150988e-110 |
| 0.3 | 1.594370e-69 |
| 0.4 | 1.306601e-50 |
| 0.5 | 1.969986e-40 |
| 0.6 | 1.960444e-34 |
| 0.7 | 1.173811e-30 |
| 0.8 | 3.821136e-28 |
| 0.9 | 2.179502e-26 |
| 1 | 4.222738e-25 |
| 1.5 | 1.514878e-21 |
| 2 | 2.484799e-19 |
| 2.5 | 2.278432e-17 |
| 3 | 1.494818e-15 |
| 3.5 | 6.716930e-14 |
| 4 | 1.978345e-12 |
| 4.5 | 3.788037e-11 |
| 5 | 4.815654e-10 |
| 6 | 2.698013e-08 |
| 7 | 5.251155e-07 |
| 8 | 5.543636e-06 |
| 9 | 4.828388e-05 |
| 10 | 5.045091e-04 |

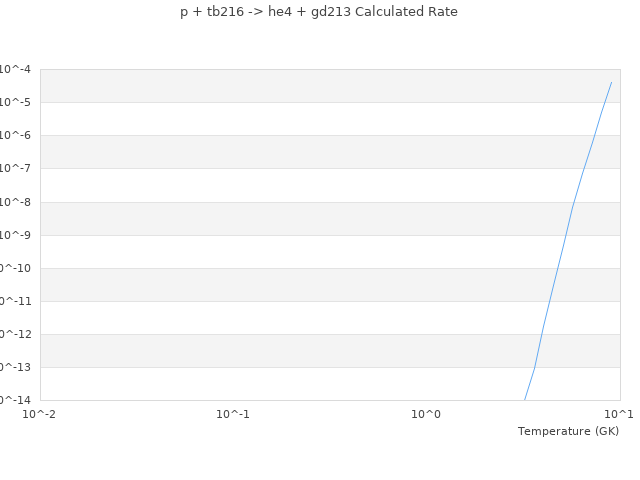

| View Graph | |
