Datapoints for p + tb217 -> n + dy217
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.166634e-69 |
| 0.15 | 2.276117e-44 |
| 0.2 | 1.842234e-32 |
| 0.3 | 7.928485e-22 |
| 0.4 | 2.748902e-17 |
| 0.5 | 7.708000e-15 |
| 0.6 | 2.895334e-13 |
| 0.7 | 4.217575e-12 |
| 0.8 | 3.766397e-11 |
| 0.9 | 2.555103e-10 |
| 1 | 1.464108e-09 |
| 1.5 | 2.434263e-06 |
| 2 | 9.317057e-04 |
| 2.5 | 9.930919e-02 |
| 3 | 3.407904e+00 |
| 3.5 | 4.514943e+01 |
| 4 | 2.784339e+02 |
| 4.5 | 9.522338e+02 |
| 5 | 2.113184e+03 |
| 6 | 4.857389e+03 |
| 7 | 8.380058e+03 |
| 8 | 2.163717e+04 |
| 9 | 1.418989e+05 |
| 10 | 3.562571e+06 |

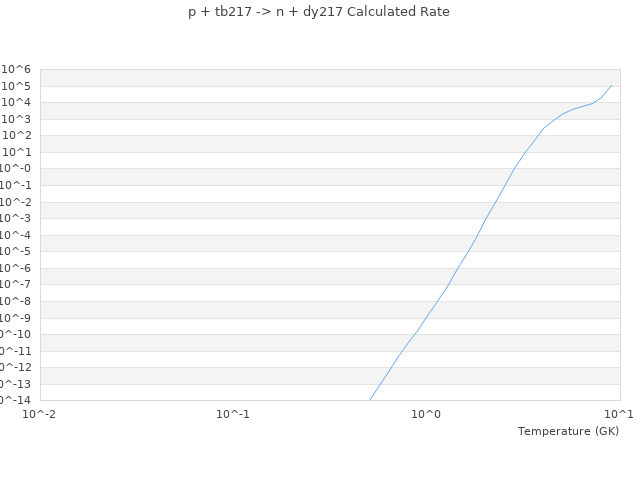

| View Graph | |
