Datapoints for he4 + gd214 -> p + tb217
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 5.611952e-223 |
| 0.4 | 9.731640e-166 |
| 0.5 | 7.529676e-133 |
| 0.6 | 7.997944e-112 |
| 0.7 | 2.406439e-97 |
| 0.8 | 8.378181e-87 |
| 0.9 | 8.797318e-79 |
| 1 | 1.864881e-72 |
| 1.5 | 1.874301e-53 |
| 2 | 3.733151e-43 |
| 2.5 | 3.565559e-36 |
| 3 | 5.723823e-31 |
| 3.5 | 6.418645e-27 |
| 4 | 1.047402e-23 |
| 4.5 | 3.928639e-21 |
| 5 | 4.687696e-19 |
| 6 | 5.607229e-16 |
| 7 | 8.301044e-14 |
| 8 | 4.662522e-12 |
| 9 | 2.359049e-10 |
| 10 | 2.136363e-08 |

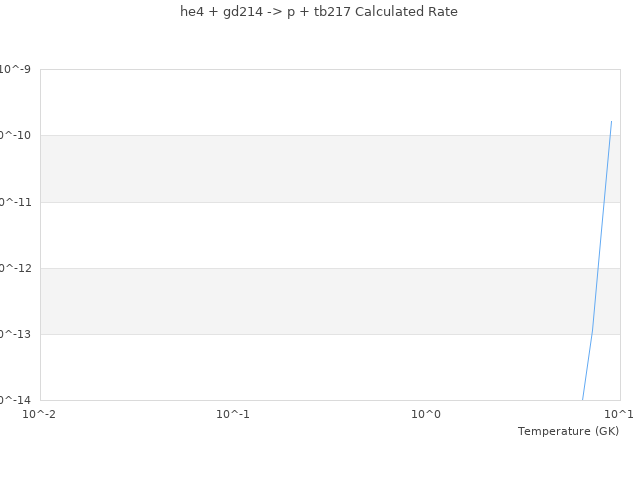

| View Graph | |
