Datapoints for p + tb217 -> he4 + gd214
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.292503e-217 |
| 0.15 | 9.173234e-142 |
| 0.2 | 6.408878e-102 |
| 0.3 | 3.425975e-63 |
| 0.4 | 6.687725e-46 |
| 0.5 | 5.555484e-37 |
| 0.6 | 6.187181e-32 |
| 0.7 | 7.178105e-29 |
| 0.8 | 6.876623e-27 |
| 0.9 | 1.586644e-25 |
| 1 | 1.586000e-24 |
| 1.5 | 1.671323e-21 |
| 2 | 3.408639e-19 |
| 2.5 | 5.233638e-17 |
| 3 | 5.351505e-15 |
| 3.5 | 3.129373e-13 |
| 4 | 9.909356e-12 |
| 4.5 | 1.732028e-10 |
| 5 | 1.778185e-09 |
| 6 | 5.368124e-08 |
| 7 | 5.738773e-07 |
| 8 | 4.490206e-06 |
| 9 | 4.904250e-05 |
| 10 | 1.302756e-03 |

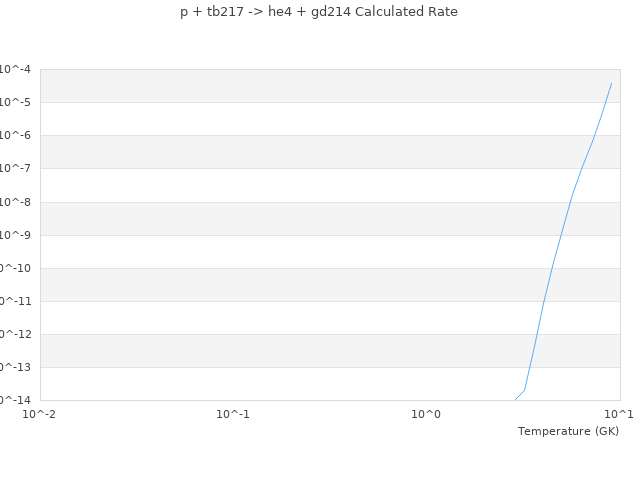

| View Graph | |
