Datapoints for n + dy170 -> he4 + gd167
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.048435e-67 |
| 0.15 | 7.289607e-48 |
| 0.2 | 1.708743e-38 |
| 0.3 | 1.407740e-29 |
| 0.4 | 2.537061e-25 |
| 0.5 | 9.020921e-23 |
| 0.6 | 5.363162e-21 |
| 0.7 | 1.248513e-19 |
| 0.8 | 1.684884e-18 |
| 0.9 | 1.610423e-17 |
| 1 | 1.217363e-16 |
| 1.5 | 4.334853e-13 |
| 2 | 2.553708e-10 |
| 2.5 | 4.739051e-08 |
| 3 | 3.592092e-06 |
| 3.5 | 1.316446e-04 |
| 4 | 2.655538e-03 |
| 4.5 | 3.275968e-02 |
| 5 | 2.697675e-01 |
| 6 | 7.226159e+00 |
| 7 | 8.154792e+01 |
| 8 | 5.487465e+02 |
| 9 | 2.866635e+03 |
| 10 | 1.426414e+04 |

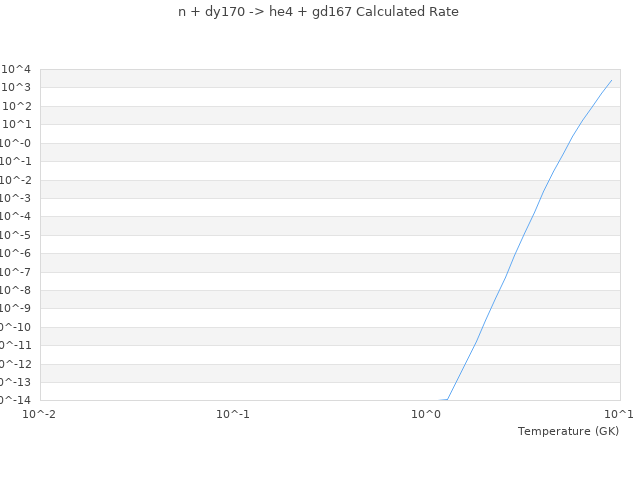

| View Graph | |
