Datapoints for n + dy172 -> he4 + gd169
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.060205e-122 |
| 0.15 | 3.914649e-84 |
| 0.2 | 1.354317e-65 |
| 0.3 | 1.444197e-47 |
| 0.4 | 9.060554e-39 |
| 0.5 | 1.712761e-33 |
| 0.6 | 6.725594e-30 |
| 0.7 | 3.141437e-27 |
| 0.8 | 4.036348e-25 |
| 0.9 | 2.232620e-23 |
| 1 | 6.887269e-22 |
| 1.5 | 1.673992e-16 |
| 2 | 8.070312e-13 |
| 2.5 | 5.214908e-10 |
| 3 | 8.977911e-08 |
| 3.5 | 5.862805e-06 |
| 4 | 1.813658e-04 |
| 4.5 | 3.108745e-03 |
| 5 | 3.322973e-02 |
| 6 | 1.312174e+00 |
| 7 | 1.950219e+01 |
| 8 | 1.610799e+02 |
| 9 | 9.839300e+02 |
| 10 | 5.519261e+03 |

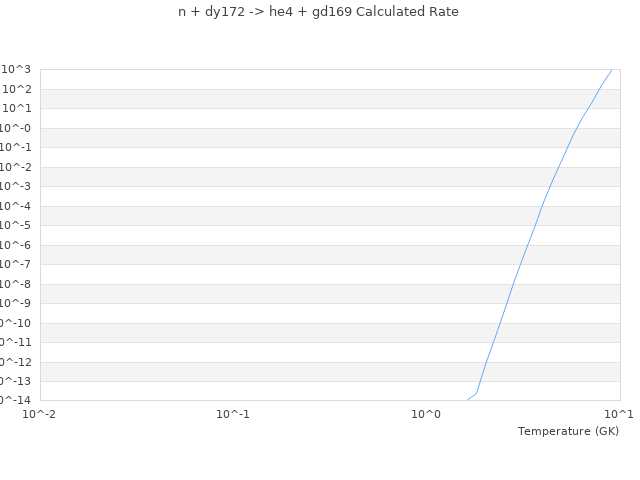

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
