Datapoints for p + dy174 -> he4 + tb171
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.016955e-190 |
| 0.15 | 3.659123e-122 |
| 0.2 | 1.032367e-86 |
| 0.3 | 6.369271e-53 |
| 0.4 | 3.250186e-38 |
| 0.5 | 8.787520e-31 |
| 0.6 | 1.239594e-26 |
| 0.7 | 4.054177e-24 |
| 0.8 | 1.803438e-22 |
| 0.9 | 2.670163e-21 |
| 1 | 2.123805e-20 |
| 1.5 | 3.005023e-17 |
| 2 | 1.502089e-14 |
| 2.5 | 4.940669e-12 |
| 3 | 8.333481e-10 |
| 3.5 | 6.280294e-08 |
| 4 | 2.101135e-06 |
| 4.5 | 3.351362e-05 |
| 5 | 2.844645e-04 |
| 6 | 5.121746e-03 |
| 7 | 3.355973e-02 |
| 8 | 1.996593e-01 |
| 9 | 2.357183e+00 |
| 10 | 1.063429e+02 |

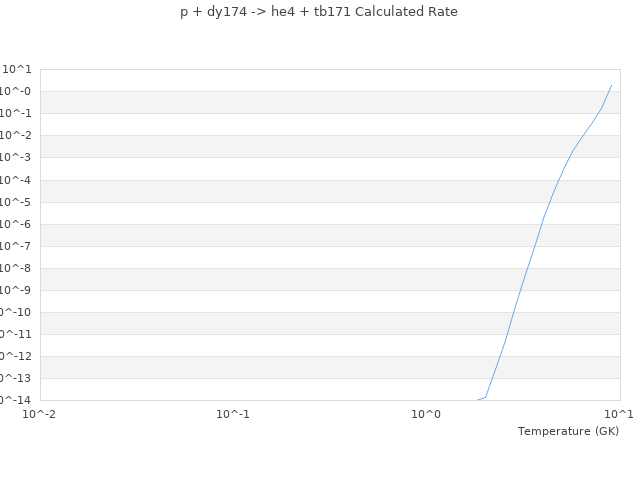

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
