Datapoints for p + dy192 -> he4 + tb189
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.620794e-228 |
| 0.15 | 6.828458e-155 |
| 0.2 | 3.387721e-115 |
| 0.3 | 1.398976e-74 |
| 0.4 | 5.167715e-55 |
| 0.5 | 4.266676e-44 |
| 0.6 | 2.081367e-37 |
| 0.7 | 5.092916e-33 |
| 0.8 | 5.634093e-30 |
| 0.9 | 9.242145e-28 |
| 1 | 4.455141e-26 |
| 1.5 | 3.328206e-21 |
| 2 | 2.683053e-18 |
| 2.5 | 6.215937e-16 |
| 3 | 7.467807e-14 |
| 3.5 | 5.229754e-12 |
| 4 | 2.206800e-10 |
| 4.5 | 5.769409e-09 |
| 5 | 9.687515e-08 |
| 6 | 8.646475e-06 |
| 7 | 2.305851e-04 |
| 8 | 2.708632e-03 |
| 9 | 2.004862e-02 |
| 10 | 1.284649e-01 |

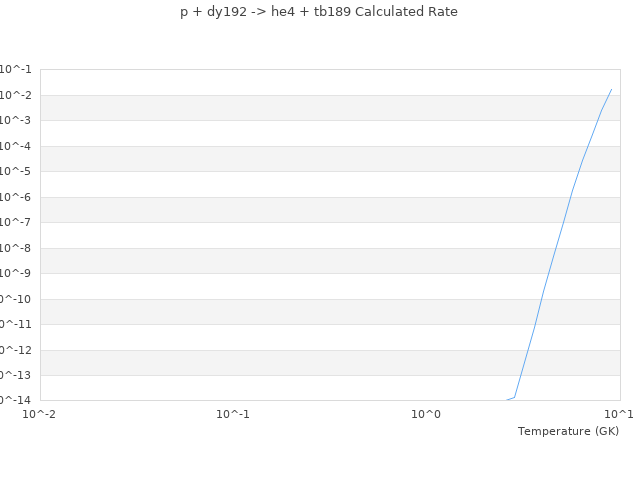

| View Graph | |
