Datapoints for he4 + tb194 -> p + dy197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 9.404592e-223 |
| 0.4 | 1.829828e-165 |
| 0.5 | 1.925399e-132 |
| 0.6 | 2.938870e-111 |
| 0.7 | 1.272543e-96 |
| 0.8 | 6.248225e-86 |
| 0.9 | 8.992869e-78 |
| 1 | 2.533921e-71 |
| 1.5 | 6.976429e-52 |
| 2 | 2.299873e-41 |
| 2.5 | 2.680983e-34 |
| 3 | 4.370462e-29 |
| 3.5 | 4.455025e-25 |
| 4 | 6.194083e-22 |
| 4.5 | 1.912228e-19 |
| 5 | 1.851422e-17 |
| 6 | 1.472048e-14 |
| 7 | 1.547126e-12 |
| 8 | 6.835824e-11 |
| 9 | 3.074280e-09 |
| 10 | 2.825073e-07 |

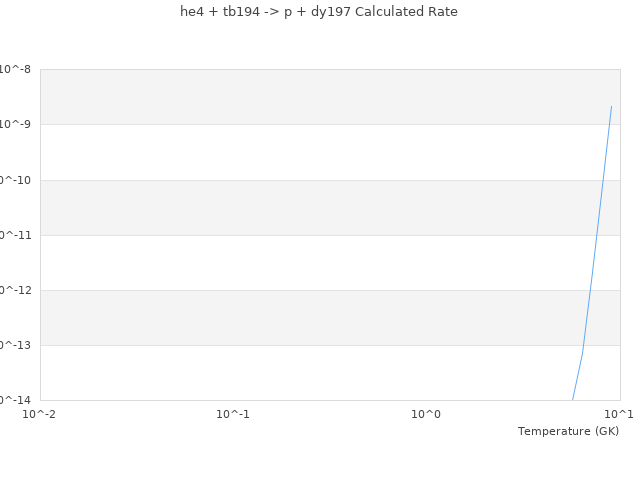

| View Graph | |
