Datapoints for p + dy202 -> he4 + tb199
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.923031e-231 |
| 0.15 | 2.112847e-157 |
| 0.2 | 2.762676e-117 |
| 0.3 | 4.528881e-76 |
| 0.4 | 4.325373e-56 |
| 0.5 | 7.161782e-45 |
| 0.6 | 5.929097e-38 |
| 0.7 | 2.190575e-33 |
| 0.8 | 3.359197e-30 |
| 0.9 | 7.160515e-28 |
| 1 | 4.266311e-26 |
| 1.5 | 5.789309e-21 |
| 2 | 5.693034e-18 |
| 2.5 | 1.354977e-15 |
| 3 | 1.544757e-13 |
| 3.5 | 9.907971e-12 |
| 4 | 3.781025e-10 |
| 4.5 | 8.938566e-09 |
| 5 | 1.366648e-07 |
| 6 | 1.047451e-05 |
| 7 | 2.538193e-04 |
| 8 | 2.873757e-03 |
| 9 | 2.169953e-02 |
| 10 | 1.495479e-01 |

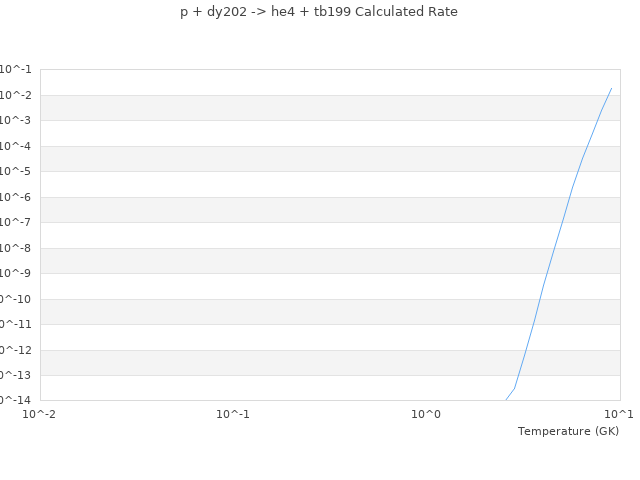

| View Graph | |
