Datapoints for he4 + tb205 -> p + dy208
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-311 |
| 0.3 | 2.012151e-205 |
| 0.4 | 3.427893e-153 |
| 0.5 | 9.604406e-123 |
| 0.6 | 4.317168e-103 |
| 0.7 | 1.738054e-89 |
| 0.8 | 1.450816e-79 |
| 0.9 | 4.997845e-72 |
| 1 | 4.151669e-66 |
| 1.5 | 1.101403e-48 |
| 2 | 1.267199e-39 |
| 2.5 | 1.312017e-33 |
| 3 | 4.183236e-29 |
| 3.5 | 1.594370e-25 |
| 4 | 1.379061e-22 |
| 4.5 | 3.875347e-20 |
| 5 | 4.454637e-18 |
| 6 | 7.488148e-15 |
| 7 | 1.676912e-12 |
| 8 | 9.612473e-11 |
| 9 | 2.322219e-09 |
| 10 | 3.521620e-08 |

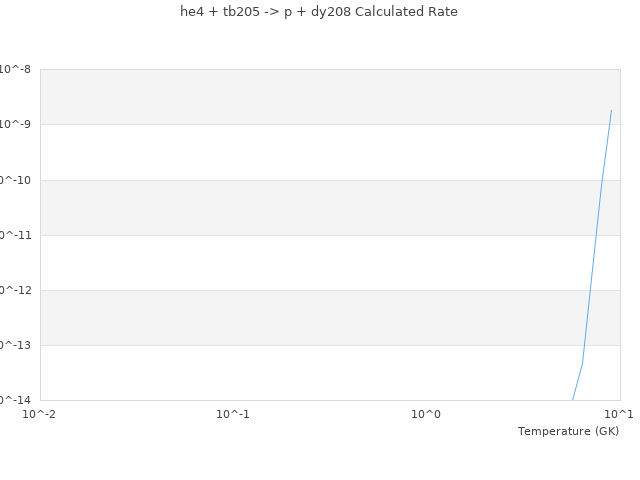

| View Graph | |
