Datapoints for he4 + tb214 -> p + dy217
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-312 |
| 0.3 | 1.008163e-205 |
| 0.4 | 2.258564e-153 |
| 0.5 | 7.127305e-123 |
| 0.6 | 3.347449e-103 |
| 0.7 | 1.353589e-89 |
| 0.8 | 1.110273e-79 |
| 0.9 | 3.711526e-72 |
| 1 | 2.970274e-66 |
| 1.5 | 6.321778e-49 |
| 2 | 5.853881e-40 |
| 2.5 | 4.976115e-34 |
| 3 | 1.329971e-29 |
| 3.5 | 4.336587e-26 |
| 4 | 3.275097e-23 |
| 4.5 | 8.204795e-21 |
| 5 | 8.590292e-19 |
| 6 | 1.281625e-15 |
| 7 | 2.801637e-13 |
| 8 | 1.733744e-11 |
| 9 | 5.023782e-10 |
| 10 | 1.019004e-08 |

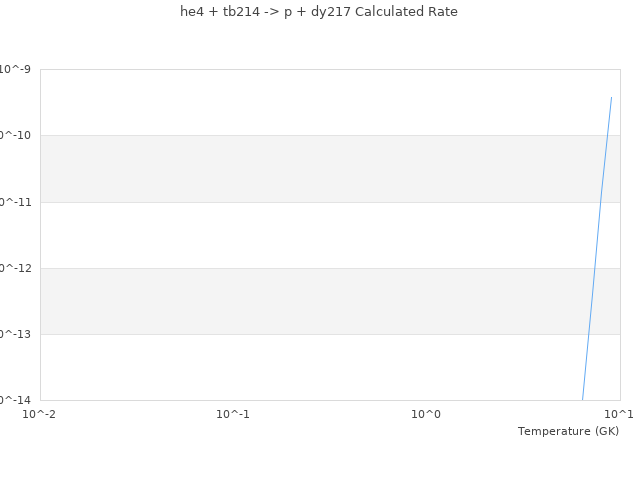

| View Graph | |
