Datapoints for he4 + er170 -> yb174
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-316 |
| 0.15 | 1.222963e-223 |
| 0.2 | 2.501289e-172 |
| 0.3 | 1.885295e-117 |
| 0.4 | 7.933765e-89 |
| 0.5 | 1.904410e-71 |
| 0.6 | 7.151711e-60 |
| 0.7 | 1.166830e-51 |
| 0.8 | 1.490946e-45 |
| 0.9 | 7.623212e-41 |
| 1 | 4.177530e-37 |
| 1.5 | 5.475866e-26 |
| 2 | 2.478841e-20 |
| 2.5 | 9.058825e-17 |
| 3 | 2.952445e-14 |
| 3.5 | 2.266905e-12 |
| 4 | 6.577352e-11 |
| 4.5 | 9.401878e-10 |
| 5 | 7.823665e-09 |
| 6 | 1.643517e-07 |
| 7 | 1.137691e-06 |
| 8 | 3.880706e-06 |
| 9 | 8.726921e-06 |
| 10 | 1.619195e-05 |

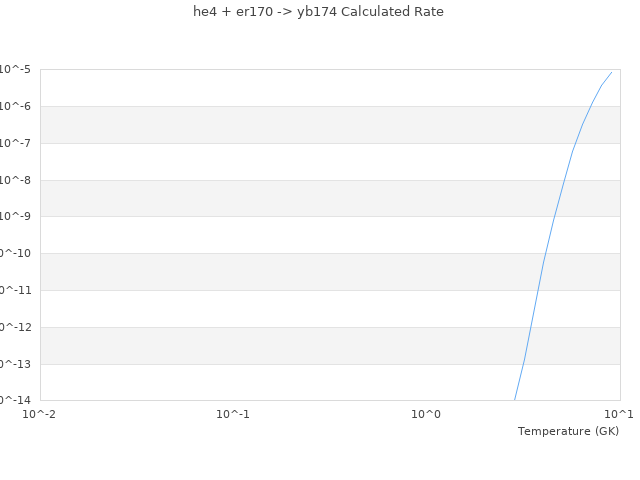

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
