Datapoints for n + er177 -> he4 + dy174
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.558173e-32 |
| 0.15 | 2.964612e-25 |
| 0.2 | 4.814066e-22 |
| 0.3 | 3.160142e-19 |
| 0.4 | 5.781767e-18 |
| 0.5 | 3.514192e-17 |
| 0.6 | 1.429845e-16 |
| 0.7 | 4.960754e-16 |
| 0.8 | 1.609404e-15 |
| 0.9 | 5.062549e-15 |
| 1 | 1.565044e-14 |
| 1.5 | 3.551587e-12 |
| 2 | 4.893116e-10 |
| 2.5 | 3.703938e-08 |
| 3 | 1.560783e-06 |
| 3.5 | 3.878403e-05 |
| 4 | 6.087764e-04 |
| 4.5 | 6.455842e-03 |
| 5 | 4.918186e-02 |
| 6 | 1.307630e+00 |
| 7 | 1.641667e+01 |
| 8 | 1.284083e+02 |
| 9 | 7.754396e+02 |
| 10 | 4.277115e+03 |

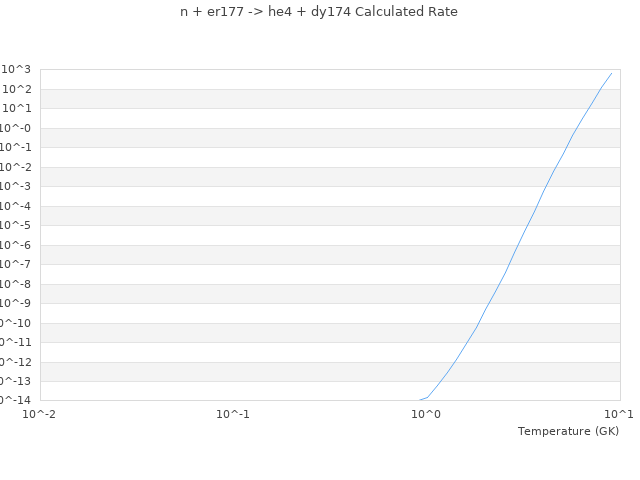

| View Graph | |
