Datapoints for p + tm175 -> yb176
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.441106e-131 |
| 0.15 | 1.075437e-78 |
| 0.2 | 4.048389e-53 |
| 0.3 | 1.242322e-30 |
| 0.4 | 5.992705e-22 |
| 0.5 | 4.568796e-18 |
| 0.6 | 3.918234e-16 |
| 0.7 | 4.731679e-15 |
| 0.8 | 2.386067e-14 |
| 0.9 | 8.269394e-14 |
| 1 | 2.490492e-13 |
| 1.5 | 6.831549e-11 |
| 2 | 2.680018e-08 |
| 2.5 | 5.701034e-06 |
| 3 | 3.962492e-04 |
| 3.5 | 8.174023e-03 |
| 4 | 5.541613e-02 |
| 4.5 | 1.485082e-01 |
| 5 | 1.943858e-01 |
| 6 | 8.980115e-02 |
| 7 | 2.562278e-02 |
| 8 | 1.641837e-02 |
| 9 | 6.735738e-02 |
| 10 | 4.121218e+00 |

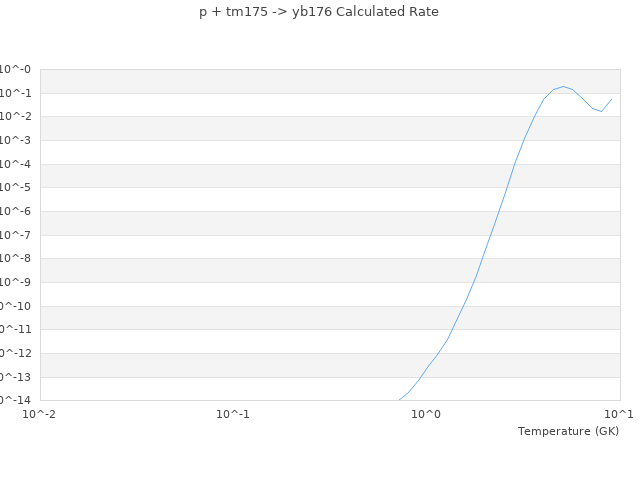

| View Graph | |
