Datapoints for p + tm176 -> yb177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.752941e-131 |
| 0.15 | 1.003870e-78 |
| 0.2 | 4.224744e-53 |
| 0.3 | 1.367639e-30 |
| 0.4 | 6.412208e-22 |
| 0.5 | 4.635938e-18 |
| 0.6 | 3.749652e-16 |
| 0.7 | 4.278524e-15 |
| 0.8 | 2.048477e-14 |
| 0.9 | 6.780350e-14 |
| 1 | 1.962262e-13 |
| 1.5 | 4.789289e-11 |
| 2 | 1.852059e-08 |
| 2.5 | 4.139475e-06 |
| 3 | 3.141173e-04 |
| 3.5 | 7.228599e-03 |
| 4 | 5.522343e-02 |
| 4.5 | 1.670893e-01 |
| 5 | 2.459461e-01 |
| 6 | 1.396298e-01 |
| 7 | 4.624521e-02 |
| 8 | 3.200792e-02 |
| 9 | 1.307422e-01 |
| 10 | 7.295926e+00 |

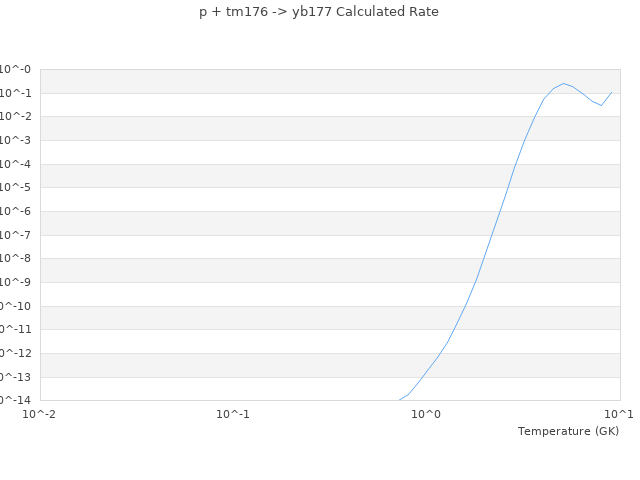

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
