Datapoints for p + tm177 -> yb178
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.493706e-132 |
| 0.15 | 9.286886e-79 |
| 0.2 | 4.713720e-53 |
| 0.3 | 1.607517e-30 |
| 0.4 | 7.066665e-22 |
| 0.5 | 4.713681e-18 |
| 0.6 | 3.543815e-16 |
| 0.7 | 3.805660e-15 |
| 0.8 | 1.735890e-14 |
| 0.9 | 5.532151e-14 |
| 1 | 1.555075e-13 |
| 1.5 | 3.558663e-11 |
| 2 | 1.368155e-08 |
| 2.5 | 3.072932e-06 |
| 3 | 2.330776e-04 |
| 3.5 | 5.309556e-03 |
| 4 | 3.977664e-02 |
| 4.5 | 1.171500e-01 |
| 5 | 1.670549e-01 |
| 6 | 8.871239e-02 |
| 7 | 2.781607e-02 |
| 8 | 1.876067e-02 |
| 9 | 7.790693e-02 |
| 10 | 4.661191e+00 |

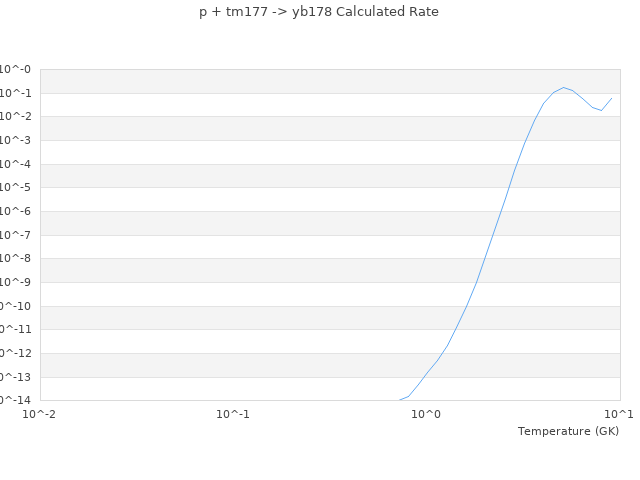

| View Graph | |
