Datapoints for p + tm186 -> yb187
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.772849e-135 |
| 0.15 | 3.621752e-81 |
| 0.2 | 4.357526e-55 |
| 0.3 | 3.412806e-32 |
| 0.4 | 2.208207e-23 |
| 0.5 | 1.837924e-19 |
| 0.6 | 1.601666e-17 |
| 0.7 | 1.921482e-16 |
| 0.8 | 9.596391e-16 |
| 0.9 | 3.309521e-15 |
| 1 | 9.993846e-15 |
| 1.5 | 3.104090e-12 |
| 2 | 1.544451e-09 |
| 2.5 | 4.326995e-07 |
| 3 | 3.957380e-05 |
| 3.5 | 1.054149e-03 |
| 4 | 8.987126e-03 |
| 4.5 | 2.942089e-02 |
| 5 | 4.570282e-02 |
| 6 | 2.744399e-02 |
| 7 | 9.283699e-03 |
| 8 | 6.556134e-03 |
| 9 | 2.804677e-02 |
| 10 | 1.719471e+00 |

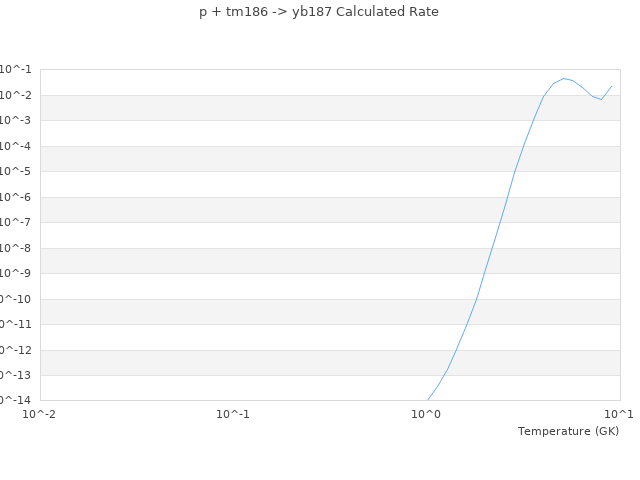

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
