Datapoints for p + tm188 -> yb189
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.999434e-135 |
| 0.15 | 4.409174e-81 |
| 0.2 | 6.276359e-55 |
| 0.3 | 5.081670e-32 |
| 0.4 | 3.052040e-23 |
| 0.5 | 2.326295e-19 |
| 0.6 | 1.872449e-17 |
| 0.7 | 2.102267e-16 |
| 0.8 | 9.953258e-16 |
| 0.9 | 3.291011e-15 |
| 1 | 9.618892e-15 |
| 1.5 | 2.783781e-12 |
| 2 | 1.391765e-09 |
| 2.5 | 4.010968e-07 |
| 3 | 3.785761e-05 |
| 3.5 | 1.036071e-03 |
| 4 | 9.012463e-03 |
| 4.5 | 2.989201e-02 |
| 5 | 4.675844e-02 |
| 6 | 2.810899e-02 |
| 7 | 9.451981e-03 |
| 8 | 6.661904e-03 |
| 9 | 2.883036e-02 |
| 10 | 1.826723e+00 |

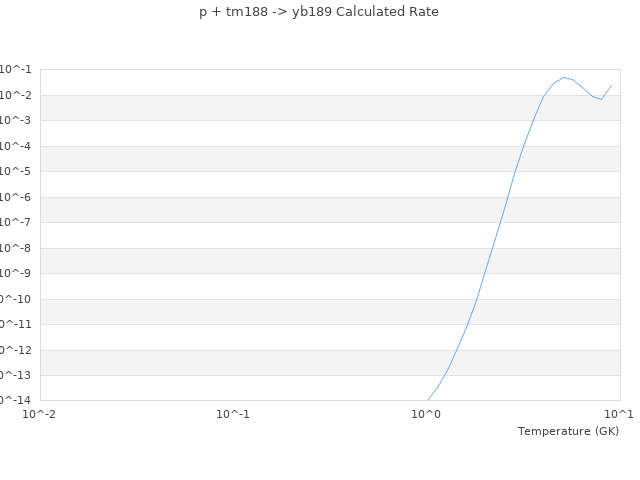

| View Graph | |
