Datapoints for p + tm192 -> yb193
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.144202e-136 |
| 0.15 | 3.736324e-82 |
| 0.2 | 7.921766e-56 |
| 0.3 | 1.009830e-32 |
| 0.4 | 7.810682e-24 |
| 0.5 | 6.991049e-20 |
| 0.6 | 6.283270e-18 |
| 0.7 | 7.640244e-17 |
| 0.8 | 3.840783e-16 |
| 0.9 | 1.330276e-15 |
| 1 | 4.033945e-15 |
| 1.5 | 1.300312e-12 |
| 2 | 6.860969e-10 |
| 2.5 | 2.050144e-07 |
| 3 | 1.993379e-05 |
| 3.5 | 5.606449e-04 |
| 4 | 5.007660e-03 |
| 4.5 | 1.704901e-02 |
| 5 | 2.736880e-02 |
| 6 | 1.730754e-02 |
| 7 | 6.104808e-03 |
| 8 | 4.493538e-03 |
| 9 | 2.019167e-02 |
| 10 | 1.319285e+00 |

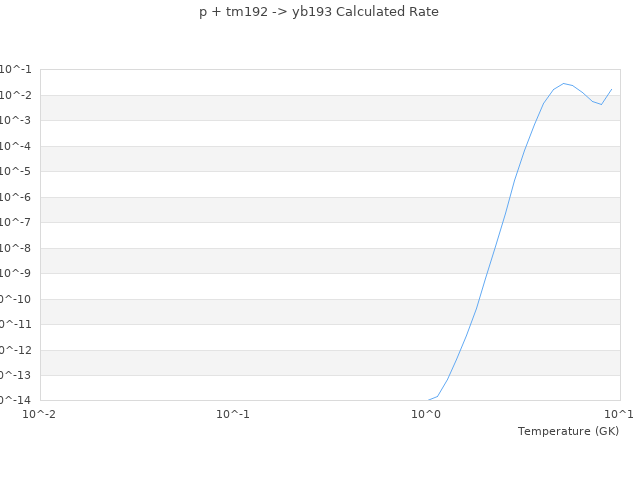

| View Graph | |
