Datapoints for p + tm193 -> yb194
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.868635e-137 |
| 0.15 | 1.951929e-82 |
| 0.2 | 4.486862e-56 |
| 0.3 | 6.364364e-33 |
| 0.4 | 5.293735e-24 |
| 0.5 | 5.005492e-20 |
| 0.6 | 4.699331e-18 |
| 0.7 | 5.922100e-17 |
| 0.8 | 3.067179e-16 |
| 0.9 | 1.089438e-15 |
| 1 | 3.375274e-15 |
| 1.5 | 1.166018e-12 |
| 2 | 6.344762e-10 |
| 2.5 | 1.913813e-07 |
| 3 | 1.854258e-05 |
| 3.5 | 5.155068e-04 |
| 4 | 4.528944e-03 |
| 4.5 | 1.512306e-02 |
| 5 | 2.377859e-02 |
| 6 | 1.442667e-02 |
| 7 | 4.904958e-03 |
| 8 | 3.509153e-03 |
| 9 | 1.549090e-02 |
| 10 | 1.006601e+00 |

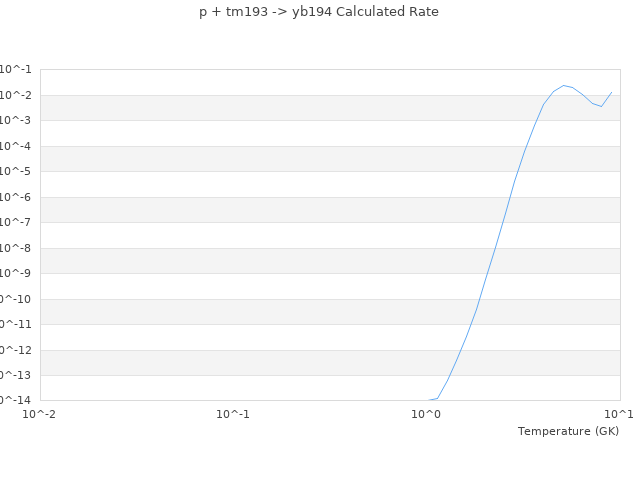

| View Graph | |
