Datapoints for p + tm217 -> yb218
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.203487e-141 |
| 0.15 | 1.969328e-84 |
| 0.2 | 4.881590e-57 |
| 0.3 | 3.533652e-33 |
| 0.4 | 3.775375e-24 |
| 0.5 | 3.085300e-20 |
| 0.6 | 2.243974e-18 |
| 0.7 | 2.164560e-17 |
| 0.8 | 8.773163e-17 |
| 0.9 | 2.519486e-16 |
| 1 | 6.528245e-16 |
| 1.5 | 1.372525e-13 |
| 2 | 6.589482e-11 |
| 2.5 | 2.002043e-08 |
| 3 | 2.005691e-06 |
| 3.5 | 5.662493e-05 |
| 4 | 4.883475e-04 |
| 4.5 | 1.543580e-03 |
| 5 | 2.223769e-03 |
| 6 | 1.056264e-03 |
| 7 | 2.700749e-04 |
| 8 | 1.483505e-04 |
| 9 | 5.414261e-04 |
| 10 | 3.276133e-02 |

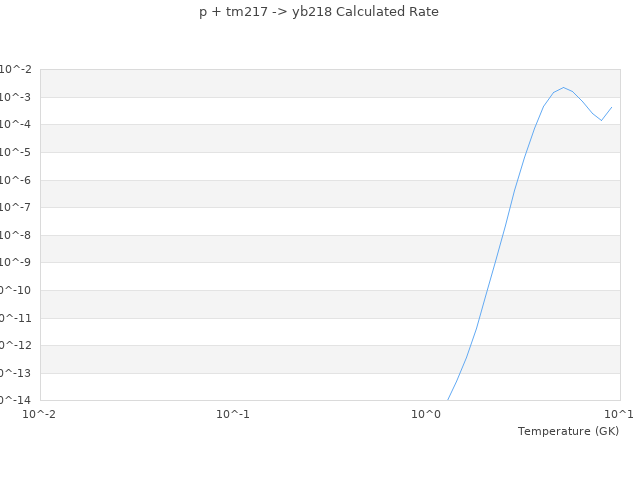

| View Graph | |
