Datapoints for p + tm222 -> yb223
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.037762e-142 |
| 0.15 | 9.278518e-85 |
| 0.2 | 3.231297e-57 |
| 0.3 | 2.721360e-33 |
| 0.4 | 2.757085e-24 |
| 0.5 | 2.052820e-20 |
| 0.6 | 1.363232e-18 |
| 0.7 | 1.216850e-17 |
| 0.8 | 4.634458e-17 |
| 0.9 | 1.268687e-16 |
| 1 | 3.172995e-16 |
| 1.5 | 6.346929e-14 |
| 2 | 3.230515e-11 |
| 2.5 | 1.078334e-08 |
| 3 | 1.193793e-06 |
| 3.5 | 3.700586e-05 |
| 4 | 3.466067e-04 |
| 4.5 | 1.175721e-03 |
| 5 | 1.797433e-03 |
| 6 | 9.352533e-04 |
| 7 | 2.555653e-04 |
| 8 | 1.484456e-04 |
| 9 | 5.739660e-04 |
| 10 | 3.725388e-02 |

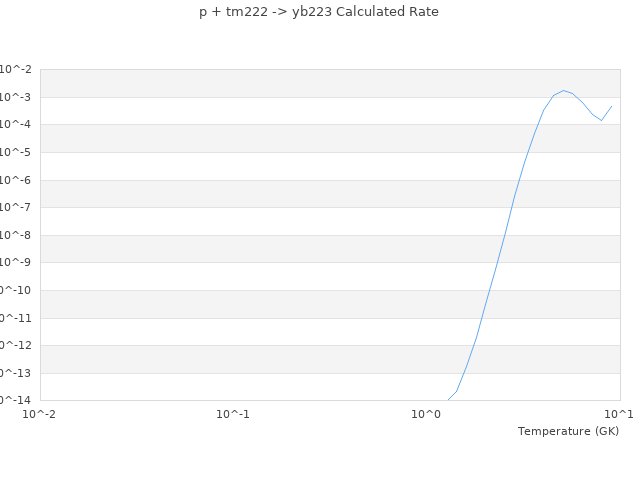

| View Graph | |
