Datapoints for p + tm223 -> yb224
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.201497e-142 |
| 0.15 | 4.895761e-85 |
| 0.2 | 1.969261e-57 |
| 0.3 | 1.904398e-33 |
| 0.4 | 2.055172e-24 |
| 0.5 | 1.584976e-20 |
| 0.6 | 1.076581e-18 |
| 0.7 | 9.766128e-18 |
| 0.8 | 3.766230e-17 |
| 0.9 | 1.041595e-16 |
| 1 | 2.627722e-16 |
| 1.5 | 5.415314e-14 |
| 2 | 2.798055e-11 |
| 2.5 | 9.375208e-09 |
| 3 | 1.032314e-06 |
| 3.5 | 3.159352e-05 |
| 4 | 2.904596e-04 |
| 4.5 | 9.628293e-04 |
| 5 | 1.433787e-03 |
| 6 | 7.037463e-04 |
| 7 | 1.809530e-04 |
| 8 | 9.914235e-05 |
| 9 | 3.638080e-04 |
| 10 | 2.261324e-02 |

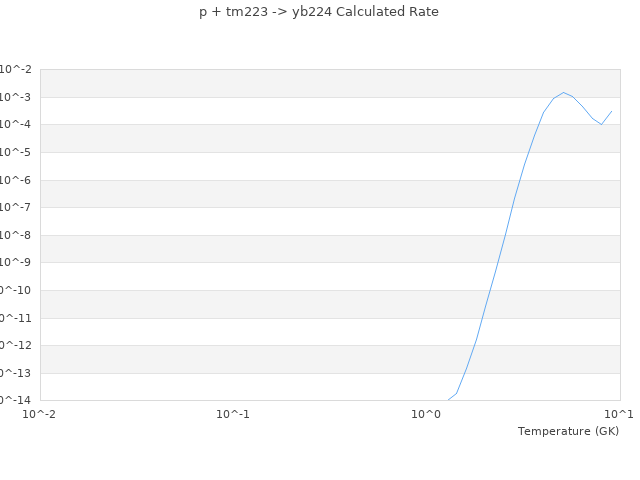

| View Graph | |
