Datapoints for p + tm226 -> yb227
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.476838e-143 |
| 0.15 | 2.134738e-85 |
| 0.2 | 1.019850e-57 |
| 0.3 | 1.127229e-33 |
| 0.4 | 1.268663e-24 |
| 0.5 | 9.934697e-21 |
| 0.6 | 6.796462e-19 |
| 0.7 | 6.198300e-18 |
| 0.8 | 2.404136e-17 |
| 0.9 | 6.695199e-17 |
| 1 | 1.703066e-16 |
| 1.5 | 3.712995e-14 |
| 2 | 2.051401e-11 |
| 2.5 | 7.343957e-09 |
| 3 | 8.594322e-07 |
| 3.5 | 2.776778e-05 |
| 4 | 2.676988e-04 |
| 4.5 | 9.247625e-04 |
| 5 | 1.427292e-03 |
| 6 | 7.427086e-04 |
| 7 | 1.999473e-04 |
| 8 | 1.138759e-04 |
| 9 | 4.331593e-04 |
| 10 | 2.793045e-02 |

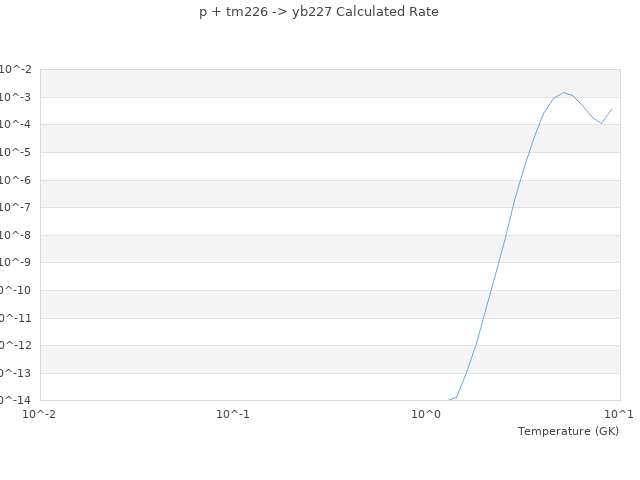

| View Graph | |
