Datapoints for p + yb146 -> he4 + tm143
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.318495e-128 |
| 0.15 | 1.221624e-76 |
| 0.2 | 9.897500e-52 |
| 0.3 | 6.344352e-30 |
| 0.4 | 1.262780e-21 |
| 0.5 | 5.074900e-18 |
| 0.6 | 2.589349e-16 |
| 0.7 | 2.007272e-15 |
| 0.8 | 6.875565e-15 |
| 0.9 | 1.695807e-14 |
| 1 | 3.785858e-14 |
| 1.5 | 3.824291e-12 |
| 2 | 1.049529e-09 |
| 2.5 | 2.473397e-07 |
| 3 | 2.648043e-05 |
| 3.5 | 1.062420e-03 |
| 4 | 1.644558e-02 |
| 4.5 | 1.116772e-01 |
| 5 | 3.933417e-01 |
| 6 | 1.377914e+00 |
| 7 | 2.687893e+00 |
| 8 | 9.200888e+00 |
| 9 | 1.424144e+02 |
| 10 | 2.157395e+04 |

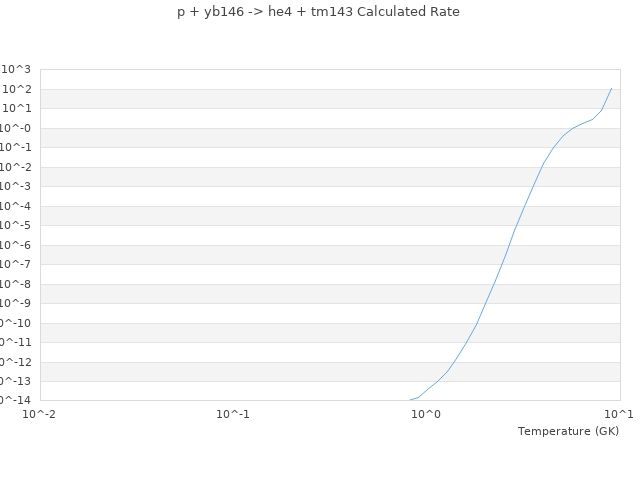

| View Graph | |
