Datapoints for he4 + tm173 -> p + yb176
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 3.525249e-268 |
| 0.3 | 2.549388e-173 |
| 0.4 | 1.374994e-128 |
| 0.5 | 2.466676e-103 |
| 0.6 | 2.257962e-87 |
| 0.7 | 1.949966e-76 |
| 0.8 | 1.832712e-68 |
| 0.9 | 2.356553e-62 |
| 1 | 1.768303e-57 |
| 1.5 | 4.058138e-42 |
| 2 | 5.681866e-33 |
| 2.5 | 2.243443e-26 |
| 3 | 2.618654e-21 |
| 3.5 | 2.447861e-17 |
| 4 | 3.274459e-14 |
| 4.5 | 9.471660e-12 |
| 5 | 8.211470e-10 |
| 6 | 4.745197e-07 |
| 7 | 3.657920e-05 |
| 8 | 1.442090e-03 |
| 9 | 8.349320e-02 |
| 10 | 1.646592e+01 |

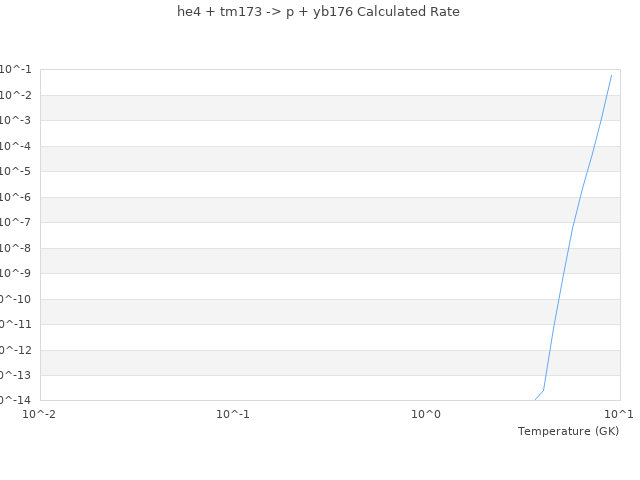

| View Graph | |
