Datapoints for p + yb176 -> he4 + tm173
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.394340e-174 |
| 0.15 | 1.921578e-108 |
| 0.2 | 4.780669e-75 |
| 0.3 | 2.871288e-44 |
| 0.4 | 1.411278e-31 |
| 0.5 | 1.510868e-25 |
| 0.6 | 2.112027e-22 |
| 0.7 | 1.278292e-20 |
| 0.8 | 1.636488e-19 |
| 0.9 | 9.617024e-19 |
| 1 | 3.857237e-18 |
| 1.5 | 1.351808e-15 |
| 2 | 7.396279e-13 |
| 2.5 | 4.174436e-10 |
| 3 | 1.332093e-07 |
| 3.5 | 1.838092e-05 |
| 4 | 1.041270e-03 |
| 4.5 | 2.575365e-02 |
| 5 | 3.121942e-01 |
| 6 | 9.432894e+00 |
| 7 | 8.834600e+01 |
| 8 | 7.167480e+02 |
| 9 | 1.213444e+04 |
| 10 | 8.948502e+05 |

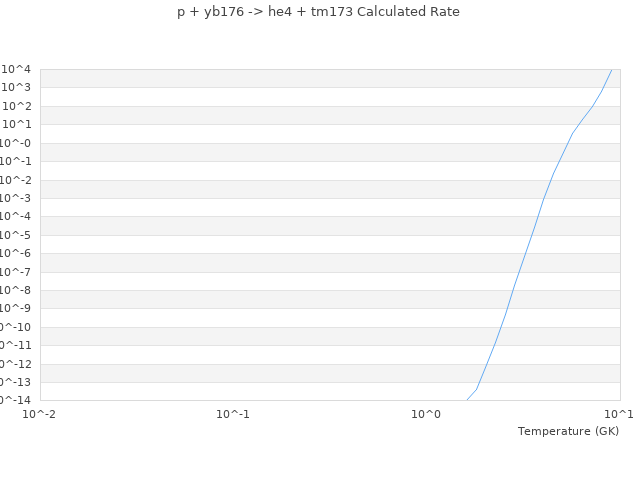

| View Graph | |
