Datapoints for he4 + er174 -> n + yb177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 1.637896e-220 |
| 0.2 | 8.758549e-167 |
| 0.3 | 4.110812e-113 |
| 0.4 | 2.666704e-86 |
| 0.5 | 3.300409e-70 |
| 0.6 | 1.844489e-59 |
| 0.7 | 9.283364e-52 |
| 0.8 | 5.914514e-46 |
| 0.9 | 2.065101e-41 |
| 1 | 9.501426e-38 |
| 1.5 | 1.941560e-26 |
| 2 | 2.388653e-20 |
| 2.5 | 2.418729e-16 |
| 3 | 2.151809e-13 |
| 3.5 | 4.565183e-11 |
| 4 | 3.776261e-09 |
| 4.5 | 1.594304e-07 |
| 5 | 4.029970e-06 |
| 6 | 7.986385e-04 |
| 7 | 4.705631e-02 |
| 8 | 1.042434e+00 |
| 9 | 9.909728e+00 |
| 10 | 4.387452e+01 |

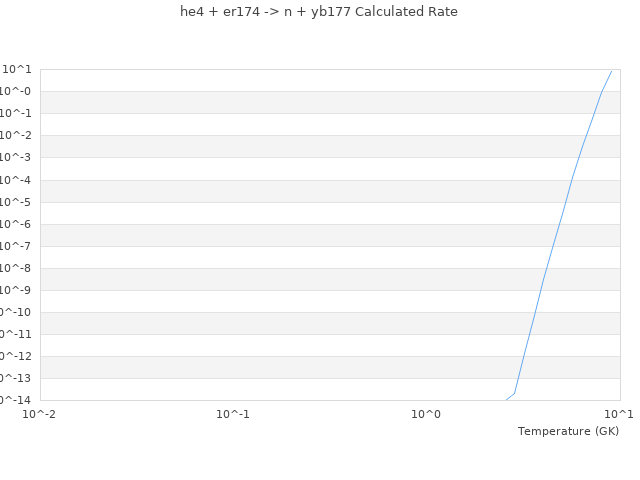

| View Graph | |
