Datapoints for he4 + tm174 -> p + yb177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 2.492074e-272 |
| 0.3 | 6.214251e-176 |
| 0.4 | 1.322660e-130 |
| 0.5 | 4.786698e-105 |
| 0.6 | 6.964473e-89 |
| 0.7 | 8.750338e-78 |
| 0.8 | 1.158724e-69 |
| 0.9 | 2.076593e-63 |
| 1 | 2.163852e-58 |
| 1.5 | 2.409522e-42 |
| 2 | 1.290552e-32 |
| 2.5 | 1.405472e-25 |
| 3 | 3.275749e-20 |
| 3.5 | 4.605564e-16 |
| 4 | 7.330017e-13 |
| 4.5 | 2.094365e-10 |
| 5 | 1.556405e-08 |
| 6 | 5.030288e-06 |
| 7 | 1.857291e-04 |
| 8 | 3.662038e-03 |
| 9 | 1.289293e-01 |
| 10 | 2.115809e+01 |

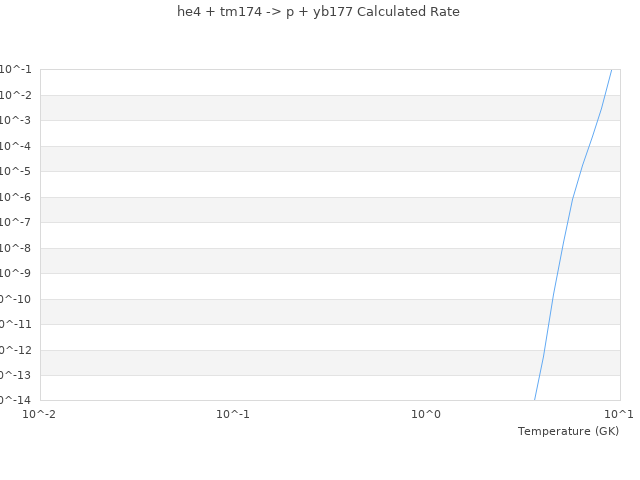

| View Graph | |
