Datapoints for p + yb177 -> he4 + tm174
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.745567e-179 |
| 0.15 | 7.187828e-111 |
| 0.2 | 1.285240e-76 |
| 0.3 | 2.823207e-45 |
| 0.4 | 1.783478e-32 |
| 0.5 | 1.964873e-26 |
| 0.6 | 2.787230e-23 |
| 0.7 | 1.781263e-21 |
| 0.8 | 2.526372e-20 |
| 0.9 | 1.716378e-19 |
| 1 | 8.231602e-19 |
| 1.5 | 8.936631e-16 |
| 2 | 1.494554e-12 |
| 2.5 | 2.033547e-09 |
| 3 | 1.184513e-06 |
| 3.5 | 2.305662e-04 |
| 4 | 1.481087e-02 |
| 4.5 | 3.485594e-01 |
| 5 | 3.515169e+00 |
| 6 | 5.679566e+01 |
| 7 | 2.467425e+02 |
| 8 | 9.773911e+02 |
| 9 | 9.875787e+03 |
| 10 | 5.970298e+05 |

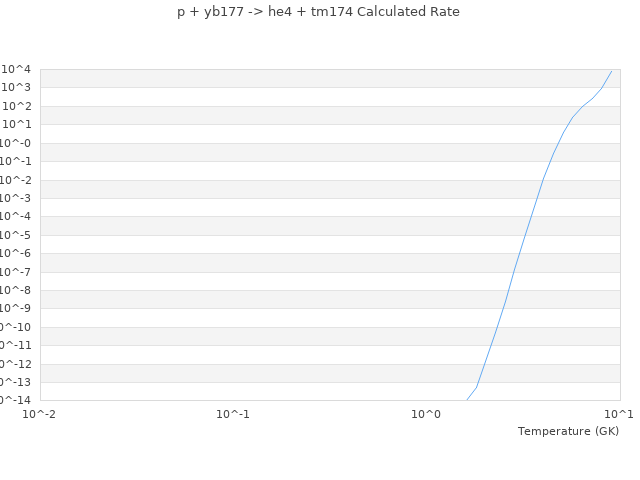

| View Graph | |
