Datapoints for he4 + tm194 -> p + yb197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-317 |
| 0.3 | 1.200677e-206 |
| 0.4 | 2.956166e-153 |
| 0.5 | 1.358627e-122 |
| 0.6 | 5.403816e-103 |
| 0.7 | 1.712735e-89 |
| 0.8 | 1.183542e-79 |
| 0.9 | 3.726455e-72 |
| 1 | 3.138276e-66 |
| 1.5 | 2.594480e-48 |
| 2 | 1.737048e-38 |
| 2.5 | 8.653574e-32 |
| 3 | 8.525734e-27 |
| 3.5 | 6.277461e-23 |
| 4 | 6.952271e-20 |
| 4.5 | 1.809134e-17 |
| 5 | 1.528472e-15 |
| 6 | 9.852698e-13 |
| 7 | 8.899366e-11 |
| 8 | 3.568615e-09 |
| 9 | 1.550842e-07 |
| 10 | 1.483735e-05 |

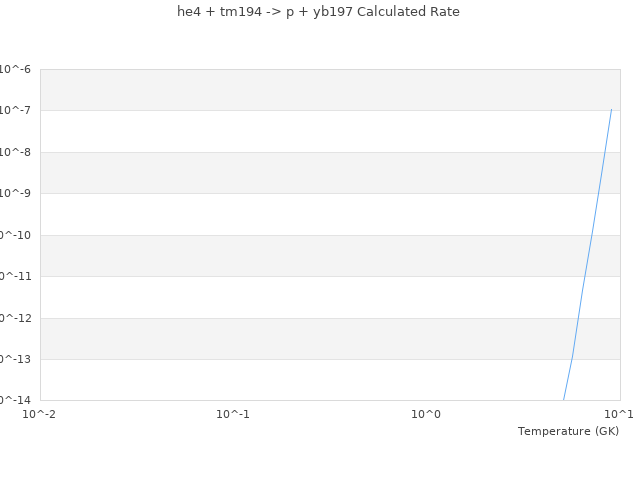

| View Graph | |
