Datapoints for p + yb199 -> he4 + tm196
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.339429e-206 |
| 0.15 | 2.071281e-131 |
| 0.2 | 1.103828e-92 |
| 0.3 | 5.343575e-56 |
| 0.4 | 3.379692e-40 |
| 0.5 | 2.588803e-32 |
| 0.6 | 5.618892e-28 |
| 0.7 | 2.155956e-25 |
| 0.8 | 9.954535e-24 |
| 0.9 | 1.451088e-22 |
| 1 | 1.114756e-21 |
| 1.5 | 1.395163e-18 |
| 2 | 7.181118e-16 |
| 2.5 | 2.503837e-13 |
| 3 | 4.258775e-11 |
| 3.5 | 2.998885e-09 |
| 4 | 8.698417e-08 |
| 4.5 | 1.132110e-06 |
| 5 | 7.525631e-06 |
| 6 | 7.992249e-05 |
| 7 | 3.348972e-04 |
| 8 | 1.588286e-03 |
| 9 | 2.091324e-02 |
| 10 | 1.617691e+00 |

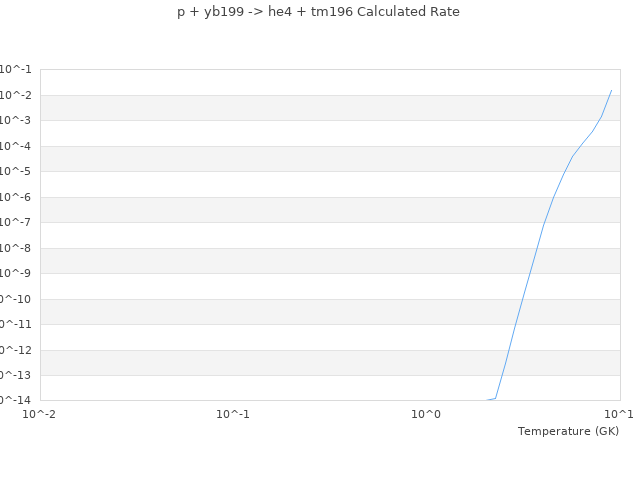

| View Graph | |
