Datapoints for p + yb200 -> he4 + tm197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.078989e-220 |
| 0.15 | 1.206485e-142 |
| 0.2 | 5.470810e-102 |
| 0.3 | 2.070659e-62 |
| 0.4 | 1.159237e-44 |
| 0.5 | 1.943099e-35 |
| 0.6 | 3.681276e-30 |
| 0.7 | 6.592434e-27 |
| 0.8 | 9.156398e-25 |
| 0.9 | 2.929185e-23 |
| 1 | 3.922368e-22 |
| 1.5 | 1.251593e-18 |
| 2 | 5.150321e-16 |
| 2.5 | 1.203952e-13 |
| 3 | 1.523796e-11 |
| 3.5 | 9.463802e-10 |
| 4 | 2.846118e-08 |
| 4.5 | 4.364286e-07 |
| 5 | 3.726924e-06 |
| 6 | 7.194794e-05 |
| 7 | 4.905623e-04 |
| 8 | 2.674463e-03 |
| 9 | 2.375750e-02 |
| 10 | 6.294039e-01 |

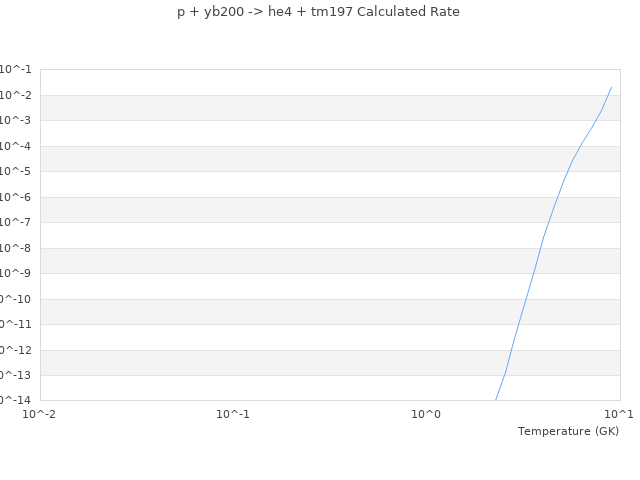

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
