Datapoints for p + yb227 -> he4 + tm224
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.662461e-254 |
| 0.15 | 1.115096e-175 |
| 0.2 | 4.429119e-132 |
| 0.3 | 2.299603e-86 |
| 0.4 | 1.198487e-63 |
| 0.5 | 1.203697e-50 |
| 0.6 | 1.602063e-42 |
| 0.7 | 4.026517e-37 |
| 0.8 | 2.343139e-33 |
| 0.9 | 1.258598e-30 |
| 1 | 1.408134e-28 |
| 1.5 | 4.437007e-23 |
| 2 | 2.407252e-20 |
| 2.5 | 2.524983e-18 |
| 3 | 1.433680e-16 |
| 3.5 | 5.663638e-15 |
| 4 | 1.649395e-13 |
| 4.5 | 3.580268e-12 |
| 5 | 5.814919e-11 |
| 6 | 6.638016e-09 |
| 7 | 2.731802e-07 |
| 8 | 4.720388e-06 |
| 9 | 4.051013e-05 |
| 10 | 2.038518e-04 |

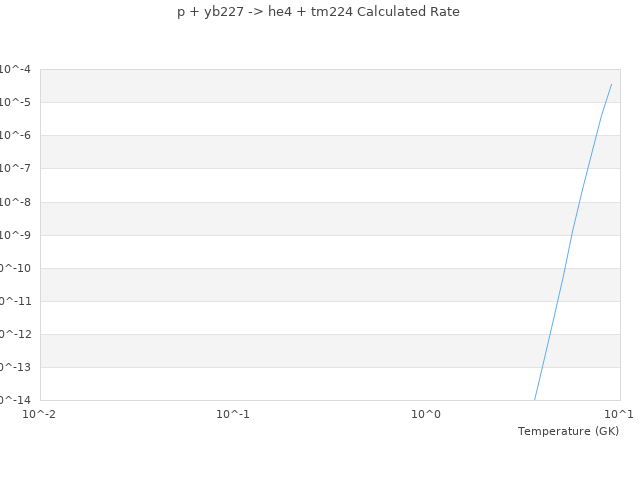

| View Graph | |
