Datapoints for p + lu196 -> hf197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.700969e-140 |
| 0.15 | 3.130346e-84 |
| 0.2 | 3.051782e-57 |
| 0.3 | 1.474257e-33 |
| 0.4 | 1.887577e-24 |
| 0.5 | 2.096712e-20 |
| 0.6 | 2.081268e-18 |
| 0.7 | 2.657548e-17 |
| 0.8 | 1.372430e-16 |
| 0.9 | 4.840117e-16 |
| 1 | 1.490425e-15 |
| 1.5 | 5.274804e-13 |
| 2 | 3.148285e-10 |
| 2.5 | 1.064102e-07 |
| 3 | 1.150425e-05 |
| 3.5 | 3.517115e-04 |
| 4 | 3.339406e-03 |
| 4.5 | 1.185435e-02 |
| 5 | 1.954157e-02 |
| 6 | 1.266854e-02 |
| 7 | 4.534878e-03 |
| 8 | 3.451827e-03 |
| 9 | 1.673984e-02 |
| 10 | 1.256254e+00 |

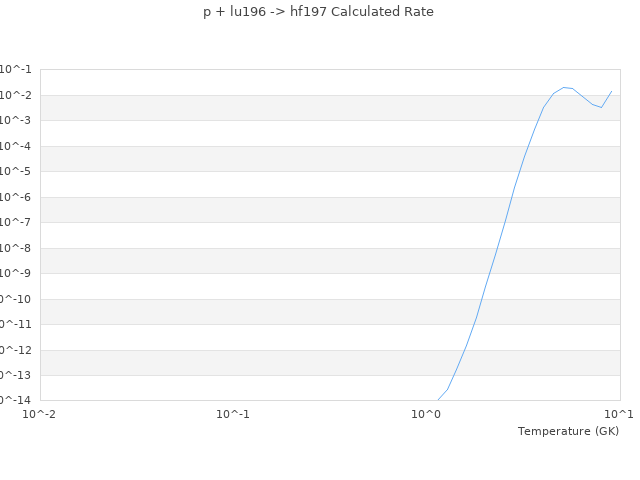

| View Graph | |
