Datapoints for he4 + yb193 -> p + lu196
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-315 |
| 0.3 | 2.064591e-205 |
| 0.4 | 2.616938e-152 |
| 0.5 | 7.775269e-122 |
| 0.6 | 2.259593e-102 |
| 0.7 | 5.645238e-89 |
| 0.8 | 3.236960e-79 |
| 0.9 | 8.774408e-72 |
| 1 | 6.539731e-66 |
| 1.5 | 3.752826e-48 |
| 2 | 2.147687e-38 |
| 2.5 | 1.003477e-31 |
| 3 | 9.726110e-27 |
| 3.5 | 7.237226e-23 |
| 4 | 8.233344e-20 |
| 4.5 | 2.224331e-17 |
| 5 | 1.965794e-15 |
| 6 | 1.409954e-12 |
| 7 | 1.443957e-10 |
| 8 | 6.688782e-09 |
| 9 | 3.426974e-07 |
| 10 | 3.953870e-05 |

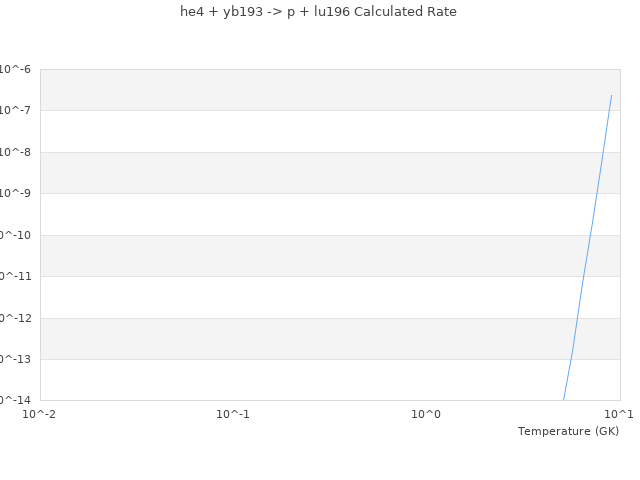

| View Graph | |
