Datapoints for w196 -> he4 + hf192
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | INFe-319 |
| 0.2 | 3.727053e-245 |
| 0.3 | 4.590329e-165 |
| 0.4 | 1.130871e-122 |
| 0.5 | 1.356362e-96 |
| 0.6 | 4.808979e-79 |
| 0.7 | 1.693685e-66 |
| 0.8 | 4.008559e-57 |
| 0.9 | 7.041298e-50 |
| 1 | 3.977771e-44 |
| 1.5 | 3.332762e-27 |
| 2 | 6.511317e-19 |
| 2.5 | 6.822690e-14 |
| 3 | 1.939273e-10 |
| 3.5 | 7.284684e-08 |
| 4 | 7.618173e-06 |
| 4.5 | 3.282489e-04 |
| 5 | 7.299852e-03 |
| 6 | 8.269055e-01 |
| 7 | 2.133005e+01 |
| 8 | 1.766015e+02 |
| 9 | 5.810388e+02 |
| 10 | 8.827055e+02 |

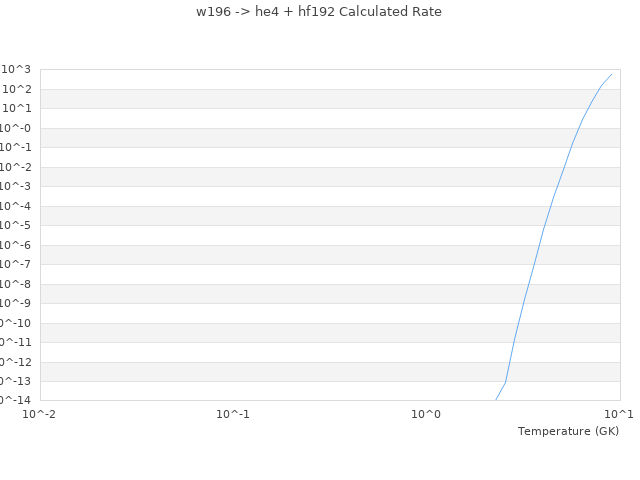

| View Graph | |
