Datapoints for he4 + hf193 -> w197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 3.829883e-251 |
| 0.2 | 9.252111e-197 |
| 0.3 | 1.826656e-136 |
| 0.4 | 5.918073e-104 |
| 0.5 | 8.246925e-84 |
| 0.6 | 3.128210e-70 |
| 0.7 | 1.548039e-60 |
| 0.8 | 2.564225e-53 |
| 0.9 | 9.182929e-48 |
| 1 | 2.235653e-43 |
| 1.5 | 1.139642e-30 |
| 2 | 1.324244e-24 |
| 2.5 | 5.561453e-21 |
| 3 | 1.727455e-18 |
| 3.5 | 1.296691e-16 |
| 4 | 4.024298e-15 |
| 4.5 | 6.767935e-14 |
| 5 | 7.153447e-13 |
| 6 | 2.724586e-11 |
| 7 | 3.285200e-10 |
| 8 | 1.520071e-09 |
| 9 | 3.038915e-09 |
| 10 | 2.860854e-09 |

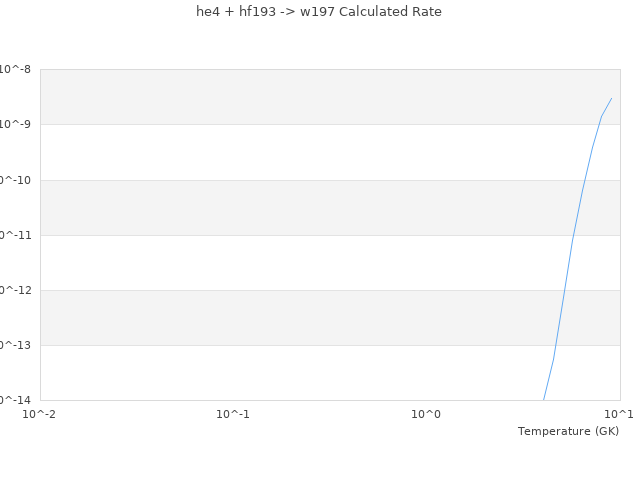

| View Graph | |
