Datapoints for p + hf196 -> ta197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.984968e-141 |
| 0.15 | 7.120528e-85 |
| 0.2 | 1.280812e-57 |
| 0.3 | 1.082275e-33 |
| 0.4 | 1.772365e-24 |
| 0.5 | 2.261835e-20 |
| 0.6 | 2.467009e-18 |
| 0.7 | 3.388573e-17 |
| 0.8 | 1.860868e-16 |
| 0.9 | 6.928880e-16 |
| 1 | 2.241207e-15 |
| 1.5 | 9.604368e-13 |
| 2 | 6.427809e-10 |
| 2.5 | 2.279186e-07 |
| 3 | 2.446431e-05 |
| 3.5 | 7.109806e-04 |
| 4 | 6.209229e-03 |
| 4.5 | 1.979818e-02 |
| 5 | 2.885152e-02 |
| 6 | 1.429680e-02 |
| 7 | 3.928301e-03 |
| 8 | 2.377458e-03 |
| 9 | 9.718584e-03 |
| 10 | 6.633323e-01 |

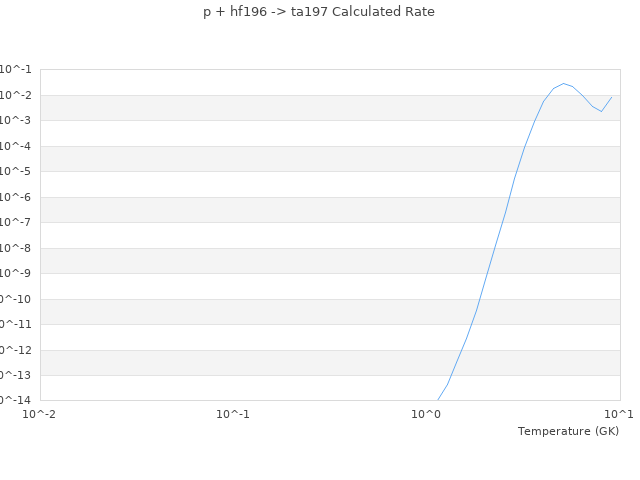

| View Graph | |
