Datapoints for p + ta193 -> w194
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.113976e-141 |
| 0.15 | 7.342917e-85 |
| 0.2 | 1.947252e-57 |
| 0.3 | 2.111562e-33 |
| 0.4 | 3.488219e-24 |
| 0.5 | 4.180113e-20 |
| 0.6 | 4.195903e-18 |
| 0.7 | 5.294101e-17 |
| 0.8 | 2.683845e-16 |
| 0.9 | 9.292424e-16 |
| 1 | 2.816701e-15 |
| 1.5 | 9.635044e-13 |
| 2 | 5.749435e-10 |
| 2.5 | 1.928433e-07 |
| 3 | 2.021244e-05 |
| 3.5 | 5.835231e-04 |
| 4 | 5.108720e-03 |
| 4.5 | 1.640477e-02 |
| 5 | 2.412558e-02 |
| 6 | 1.219119e-02 |
| 7 | 3.412614e-03 |
| 8 | 2.102678e-03 |
| 9 | 8.762070e-03 |
| 10 | 6.119860e-01 |

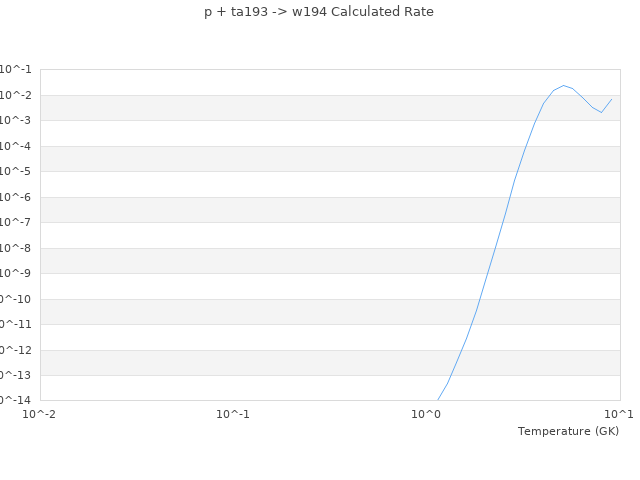

| View Graph | |
