Datapoints for p + ta193 -> he4 + hf190
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.079670e-209 |
| 0.15 | 1.146886e-132 |
| 0.2 | 2.930896e-93 |
| 0.3 | 6.685099e-56 |
| 0.4 | 8.335391e-40 |
| 0.5 | 8.794614e-32 |
| 0.6 | 2.213746e-27 |
| 0.7 | 9.005663e-25 |
| 0.8 | 4.198660e-23 |
| 0.9 | 6.017012e-22 |
| 1 | 4.480094e-21 |
| 1.5 | 4.628323e-18 |
| 2 | 2.116569e-15 |
| 2.5 | 7.185305e-13 |
| 3 | 1.276217e-10 |
| 3.5 | 9.847396e-09 |
| 4 | 3.227852e-07 |
| 4.5 | 4.832126e-06 |
| 5 | 3.723021e-05 |
| 6 | 5.280999e-04 |
| 7 | 2.837487e-03 |
| 8 | 1.613409e-02 |
| 9 | 2.341601e-01 |
| 10 | 1.815249e+01 |

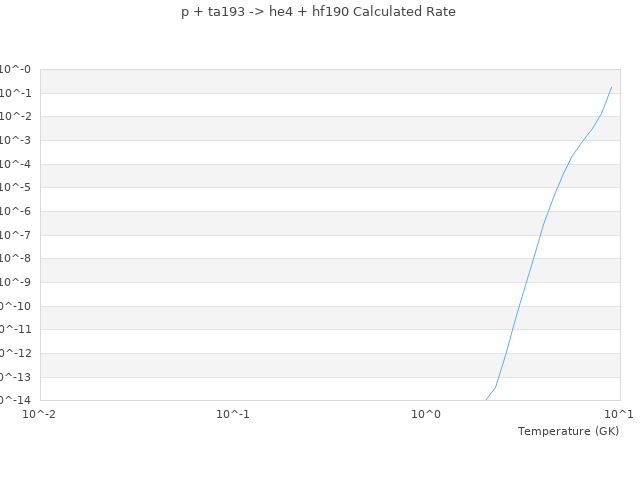

| View Graph | |
