Datapoints for p + ta196 -> he4 + hf193
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.152429e-224 |
| 0.15 | 4.111026e-145 |
| 0.2 | 1.028094e-103 |
| 0.3 | 2.564747e-63 |
| 0.4 | 3.859263e-45 |
| 0.5 | 1.158945e-35 |
| 0.6 | 3.169463e-30 |
| 0.7 | 7.216667e-27 |
| 0.8 | 1.176999e-24 |
| 0.9 | 4.196799e-23 |
| 1 | 6.046772e-22 |
| 1.5 | 2.167390e-18 |
| 2 | 8.787775e-16 |
| 2.5 | 2.012670e-13 |
| 3 | 2.555851e-11 |
| 3.5 | 1.639800e-09 |
| 4 | 5.236928e-08 |
| 4.5 | 8.735245e-07 |
| 5 | 8.279653e-06 |
| 6 | 2.062660e-04 |
| 7 | 1.893324e-03 |
| 8 | 1.423334e-02 |
| 9 | 1.761476e-01 |
| 10 | 6.501021e+00 |

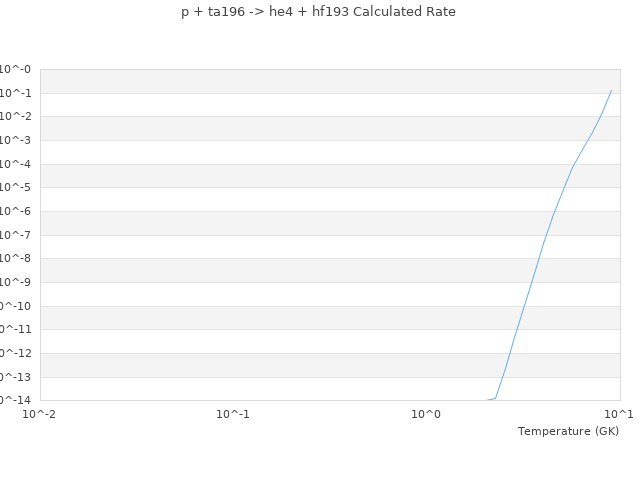

| View Graph | |
