Datapoints for n + w172 -> he4 + hf169
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.445728e+04 |
| 0.15 | 1.551001e+04 |
| 0.2 | 1.718320e+04 |
| 0.3 | 2.070947e+04 |
| 0.4 | 2.390424e+04 |
| 0.5 | 2.673284e+04 |
| 0.6 | 2.931661e+04 |
| 0.7 | 3.178678e+04 |
| 0.8 | 3.425607e+04 |
| 0.9 | 3.681737e+04 |
| 1 | 3.954841e+04 |
| 1.5 | 5.799137e+04 |
| 2 | 9.048984e+04 |
| 2.5 | 1.487058e+05 |
| 3 | 2.523010e+05 |
| 3.5 | 4.340095e+05 |
| 4 | 7.457896e+05 |
| 4.5 | 1.265054e+06 |
| 5 | 2.098255e+06 |
| 6 | 5.242475e+06 |
| 7 | 1.111781e+07 |
| 8 | 1.941508e+07 |
| 9 | 2.734325e+07 |
| 10 | 3.060761e+07 |

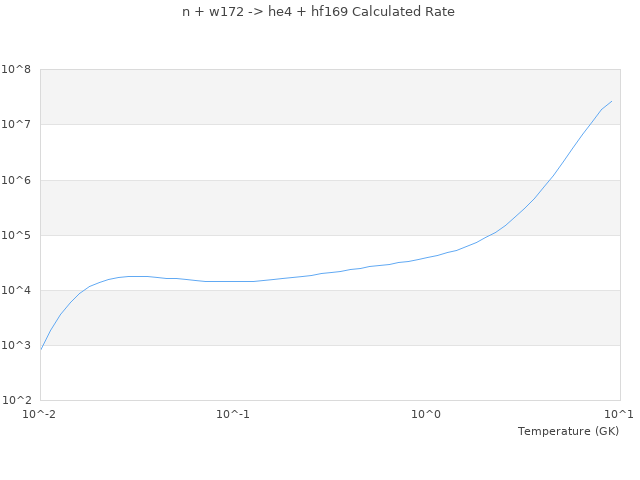

| View Graph | |
